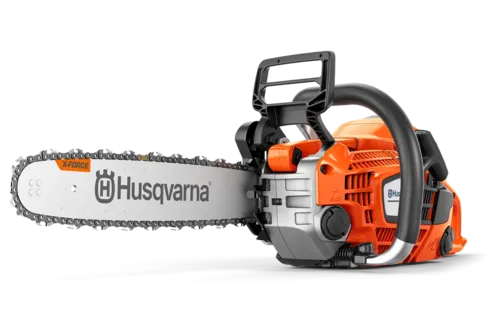

HUSQVARNA 540 XP® Mark III Chainsaw
$134.39
Fuel your next project with our innovative chainsaws designed for maximum output!Shop for HUSQVARNA 540 XP® Mark III Chainsaw in the Collections of Chainsaws at GardenGearUSA.com.Engine14″ SP21G SN .325miniSKU: 970 51 01‑1416″ SP21G SN .325miniSKU: 970 51 01‑1614″ S93G SN 3/8miniSKU: 970 51 80‑1416″ S93G SN 3/8miniSKU: 970 51 80‑16Chain speed at max power66.4 fts66.4 fts65.6 fts65.6 ftsCylinder…
Fuel your next project with our innovative chainsaws designed for maximum output!Shop for HUSQVARNA 540 XP® Mark III Chainsaw in the Collections of Chainsaws at GardenGearUSA.com.
| Engine |
14″ SP21G SN .325mini
SKU: 970 51 01‑14
|
16″ SP21G SN .325mini
SKU: 970 51 01‑16
|
14″ S93G SN 3/8mini
SKU: 970 51 80‑14
|
16″ S93G SN 3/8mini
SKU: 970 51 80‑16
|
| Chain speed at max power | 66.4 fts | 66.4 fts | 65.6 fts | 65.6 fts |
|---|---|---|---|---|
| Cylinder displacement | 39.1 cm³ | 39.1 cm³ | 39.1 cm³ | 39.1 cm³ |
|
Output shaft power1Â
|
2.6 hp | 2.6 hp | 2.6 hp | 2.6 hp |
| Torque, max. | 1.9 Nm | 1.9 Nm | 1.9 Nm | 1.9 Nm |
| Torque, max. at rpm | 7,500 rpm | 7,500 rpm | 7,500 rpm | 7,500 rpm |
| Clutch engagement speed (±120) | 4,400 rpm | 4,400 rpm | 4,400 rpm | 4,400 rpm |
| Electrode gap | 0.03 in | 0.03 in | 0.03 in | 0.03 in |
| Idling speed | 3,000 rpm | 3,000 rpm | 3,000 rpm | 3,000 rpm |
| Ignition module air gap | 0.01 in | 0.01 in | 0.01 in | 0.01 in |
| Maximum power speed | 10,200 rpm | 10,200 rpm | 10,200 rpm | 10,200 rpm |
| Oil pump type | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle |
| Spark Plug | NGK CMR7H | NGK CMR7H | NGK CMR7H | NGK CMR7H |
| Equipment | ||||
| Recommended bar length, min | 12 in | 12 in | 12 in | 12 in |
| Pitch | .325″ mini | .325″ mini | 3/8″ mini | 3/8″ mini |
| Recommended bar length, max | 16 in | 16 in | 16 in | 16 in |
| Chain type | SP21G | SP21G | S93G | S93G |
| Bar length | 35 cm | 40 cm | 35 cm | 40 cm |
| Bar length (inch) | 14 in | 16 in | 14 in | 16 in |
| Sprocket type | Spur 7 | Spur 7 | Spur 6 | Spur 6 |
| Gauge | .043″ | .043″ | .050″ | .050″ |
| Dimensions | ||||
| Weight (excl. cutting equipment) | 9 lbs | 9 lbs | 9 lbs | 9 lbs |
| Sound and noise | ||||
| Sound pressure level at operators ear | 103 dB(A) | 103 dB(A) | 103 dB(A) | 103 dB(A) |
| Sound power level, guaranteed (LWA) | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) |
| Sound power level, measured | 111 dB(A) | 111 dB(A) | 111 dB(A) | 111 dB(A) |
| Vibration | ||||
| Equivalent vibration level (ahv, eq) rear handle | 5.1 m/s² | 5.1 m/s² | 5.1 m/s² | 5.1 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.7 m/s² | 3.7 m/s² | 3.7 m/s² | 3.7 m/s² |
| Lubricant | ||||
| Oil tank volume | 0.49 US pint | 0.49 US pint | 0.49 US pint | 0.49 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
