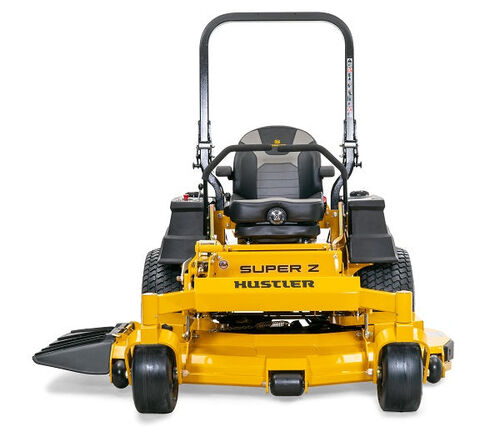

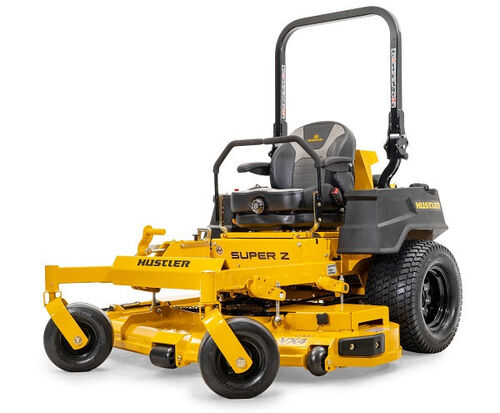

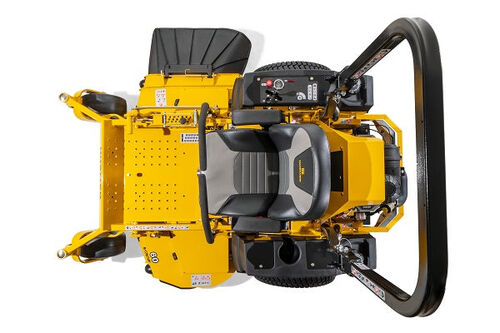

Hustler Super Z 66″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP)
$279.99
Get more done in less time with our efficient lawn mowers designed for the busy homeowner!Shop for Hustler Super Z 66″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP) in the Collections of Lawn mowers at GardenGearUSA.com.Warranty5 Year / 1200 Hour (First 2 Years No Hour Limit)3 Year Limited EngineLiteratureSuper Z Owners…
Get more done in less time with our efficient lawn mowers designed for the busy homeowner!Shop for Hustler Super Z 66″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP) in the Collections of Lawn mowers at GardenGearUSA.com.
Warranty
|
Literature
|
Features Hustler’s VX4 Deck, Heavy-Duty Hydraulic
The Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass more quickly and efficiently regardless of conditions.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high speeds while maintaining cut quality.
- Foot Operated Deck Lift: Easily adjust the deck height between 1â€- 5.5†with your foot.
- I3M Suspension Seat:Â High-back seat with adjustable armrests and 3-inch travel range.
- SmoothTrakâ„¢ Steering:Â Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Large Fuel Capacity:Â Large 11.7 US gal. fuel tank for all-day mowing.
- Easy Serviceability:Â Flip-up seat pan, removable floor pan, and vented pulley covers for easy and simple maintenance.
- Unmatched Hydraulics:Â Heavy-duty hydraulics deliver more power and torque than many other machines.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super Z Accessories |
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) | 937912 |
| 3 Bag Catcher Adapter 66″ | 123780 |
| Bac-Vac Catcher (must order (1) adapter kit below to complete) | 937896 |
| Bac-Vac Catcher Adapter 66″ | 123780 |
| Mulching Kit | 124316 |
| Flex Forks Kit (cannot use with Bagger installed) | 606696 |
| Electric Deck Lift | 124485 |
| Light Kit | 123549 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Hitch Kit | 123915 |
| Sand Kit 66″ | 124138 |
| Steering Lever Extension Kit | 122760 |
| Stripe Kit | 116842 |
| Rear Anti-Scalp (Dual) 60″, 66″ Deck | 113911 |
| Rear Anti-Scalp (Single) 54″, 60″, 66″, 72″ Deck | 113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) | 607446 |
| Semi-Pneumatic Tire – tire / wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX1000 |
| Engine Horsepower | 35 |
| Displacement | 999cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy-Duty Canister |
| Engine Warranty | 5 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear 21cc PY pumps with Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/8″ fan |
| Fuel Capacity | 11.7 gal. |
| Ground Speed (Fwd) | Up to 14 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 66″ |
| Cutting Height | 1″ to 5.5″ |
| Deck Depth | 5.5″ |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 22.50″ |
| Blade Tip Speed | 18,200 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5″ x .375″ steel bar |
Construction |
|
| Frame | 1.5″ X 3″ steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2″ steel |
General |
|
| Seat | I3M Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (Inches) | 13 x 6.5-6 |
| Drive Tire (Inches) | 24 x 12-12 |
| Weight (lbs) | 1516 |
| Height (Inches) | 46.8, 72.5 w/ ROPS up |
| Length (Inches) | 91.5 |
| Width w/ Chute Up (Inches) | 72 |
| Tire-to-Tire Width (Inches) | 60 |
| Productivity (Acres Per Hour) | 7.46 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | 3-bag |
| Powered / Non-Powered | Powered |
| Catcher Capacity | 12 bushel |
| Mower Length w/ Catcher | 117″ |
| Mower Width w/ Catcher | 76.9″ |
| Style 2: Catcher Style | BAC-VAC |
| Style 2: Powered / Non-Powered | Powered |
| Style 2: Catcher Capacity | 10 bushel |
| Style 2: Mower Length w/ Catcher | 110.5″ |
| Style 2: Mower Width w/ Catcher | 76.9″ |
If you have any questions about this Hustler Super Z 66″ mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
