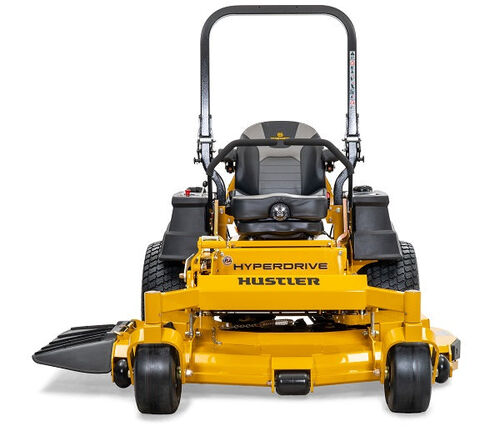

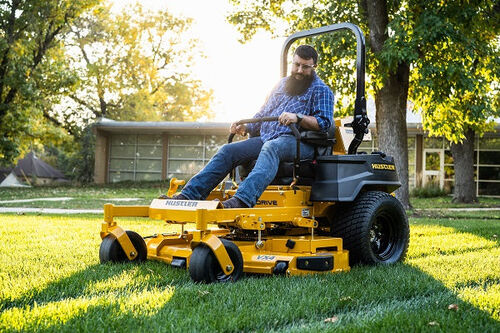

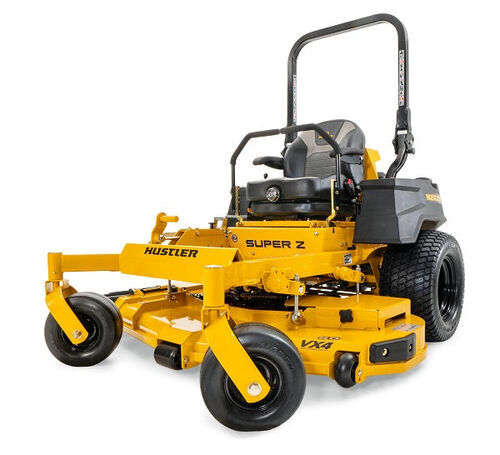

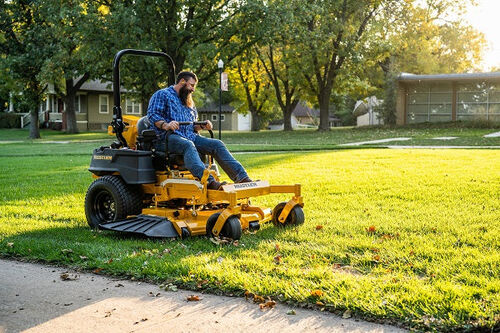

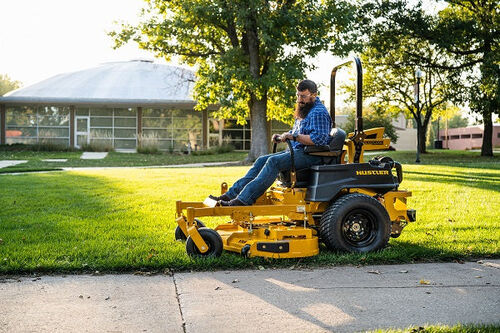

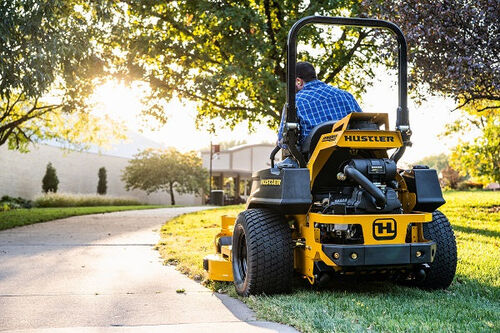

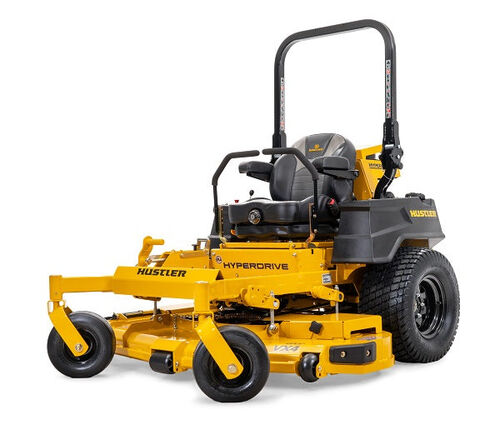

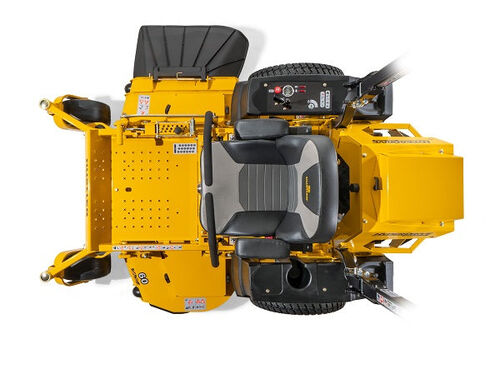

Hustler Super Z HyperDrive 60″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP)
$279.99
Create the perfect outdoor space with our efficient mowers that elevate your yard care game!Shop for Hustler Super Z HyperDrive 60″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP) in the Collections of Lawn mowers at GardenGearUSA.com.All Hustler Lawn MowersWarranty5 Year / 1200 Hour (First 2 Years No Hour Limit)3 Year Limited…
Create the perfect outdoor space with our efficient mowers that elevate your yard care game!Shop for Hustler Super Z HyperDrive 60″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP) in the Collections of Lawn mowers at GardenGearUSA.com.
All Hustler Lawn Mowers |
Warranty
|
Literature
|
Powerhouse that Delivers Unrivaled Performance
The Hustler HyperDrive® Z 60″ features the exclusive HyperDrive transmission system – the largest, most durable drive system in the industry. And, it’s backed by a 3,000-hour drive system warranty.
- SmoothTrakâ„¢ Steering:Â Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot Operated Deck Lift: Easily adjust the deck height between 1â€- 5.5†with your foot.
- I3M Suspension Seat:Â High-back seat with adjustable armrests and 3-inch travel range.
- Commercial-grade Torque:Â Danfoss DDC-20 pumps and Parker TG280 wheel motors.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high speeds while maintaining cut quality.
- Easy Serviceability:Â Flip-up seat pan, removable floor pan, and vented pulley covers for easy and simple maintenance.
- Large Drive Tire: Large 26″ drive tires provide a smoother ride experience.
- Hydraulic System Warranty: 3000-Hour pump and motor warranty unmatched in the industry.
- HyperDrive Hydro System: A Hustler® exclusive, industrial pump and high torque wheel motors, 3-gallon reservoir, oil cooler, and hot oil shuttle.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super Z Hyperdrive Accessories |
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) | 943571 |
| Bac-Vac Catcher (must order (1) adapter kit below to complete) | 943563 |
| 3 Bag and Bac-Vac Catcher Adapter 60″ | 128799 |
| Fabric Side Catcher 3.5 bushel (no adapter needed) | 943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | GCSS |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
GCSSXL |
| Mulching Kit 60″ | 124314 |
| Flex Forks Kit (cannot use with Bagger installed) | 606696 |
| Front Light Bar Kit | 128867 |
| Side Light Bar Kit (must purchase 128867 to add side light) | 128869 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Hitch Kit | 123915 |
| Sand Kit 60″ | 124137 |
| Steering Lever Extension Kit | 122760 |
| Stripe Kit 60″ Deck | 116840 |
| Rear Anti-Scalp (Dual) 60″, 66″ Deck | 113911 |
| Rear Anti-Scalp (Single) 54″, 60″, 66″, 72″ Deck | 113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) | 607445 |
| Semi-Pneumatic Tire – tire/wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX1000 |
| Engine Horsepower | 35 |
| Displacement | 999cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy-Duty Canister |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Danfoss DDC-20 Transmission w/Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/9″ fan |
| Fuel Capacity | 11.7 gal. |
| Ground Speed (Fwd) | Up to 16 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 60″ |
| Cutting Height | 1″ to 5.5″ |
| Deck Depth | 5.5″ |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 20.50″ |
| Blade Tip Speed | 18,600 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5″ x .375″ steel bar |
Construction |
|
| Frame | 1.5″ X 3″ steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2″ steel |
General |
|
| Seat | I3M Suspension Seat (adjustable armrests & back) |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (Inches) | 13 x 6.5-6 |
| Drive Tire (Inches) | 26 x 12-12 |
| Weight (lbs) | 1536 |
| Height (Inches) | 47.8, 73.5 w/ ROPS up |
| Length (Inches) | 89 |
| Width w/ Chute Up (Inches) | 66 |
| Tire-to-Tire Width (Inches) | 57 |
| Productivity (Acres Per Hour) | 7.76 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | 3-bag |
| Powered / Non-Powered | Powered |
| Catcher Capacity | 12 bushel |
| Mower Length w/ Catcher | 114.9″ |
| Mower Width w/ Catcher | 70.9″ |
| Style 2: Catcher Style | BAC-VAC |
| Style 2: Powered / Non-Powered | Powered |
| Style 2: Catcher Capacity | 10 bushel |
| Style 2: Mower Length w/ Catcher | 108.4″ |
| Style 2: Mower Width w/ Catcher | 70.9″ |
