ICS 695GC Gas Concrete Chainsaw Bar and Chain Package

Upgrade your toolkit with our durable chainsaws, built to handle the toughest challenges!Shop for ICS 695GC Gas Concrete Chainsaw Bar and Chain Package in the Collections of Chainsaws at GardenGearUSA.com.

ICS 695GC GAS CONCRETE CHAINSAW BAR AND CHAIN PACKAGE



Ace Cutting has this saw prepped before shipping.  We try our best to adjust the carburetor to meet the location / elevation being shipped.  This assures us to see defects or problems before shipping.  Our technicians run the saw, empty the fuel and fit back to original packaging.

Features & Benefits

• Use on concrete, stone, masonry, ductile iron pipe, cast iron pipe and more
• Requires 20 PSI pressurized water.  Do not use standard pump-up water can as they do not provide enough water.  Standard garden hose connection.
• Most versatile gas-power cutter
• New piston and cylinder lowers engine temperature
• Longer life muffler with reinforced internal baffle
• Easy-to-start with higher energy ignition system
• New easy-to-tune carburetor

Proper Chain Tension is very important.  Rule of thumb is a diamond chain can be pulled freely around the guide bar by hand easily without binding.  Proper chain tension should allow drive links to hang below bar.  Click here for full ICS Chain Tension Tip Sheet.

For the straightest cuts use the Step Cut Method.  Score the line first about 1/2″ deep next deepen the cut about 2″ then plunge all the way through and complete the cut.  Plunge cutting generally results in a straighter start.  If the cut does not start straight, it will not finish straight.  When cutting heavy rebar, slowly rock the saw over the rebar, maintaining gray slurry water, so that you’re always cutting concrete as well as steel.  This will help keep diamonds exposed, expect less chain life when cutting heavy rebar.

If cuts are consistently crooked, turn the guide bar over and use the other side.  Note: normal life of a guide bar is 2-3 chains.  Heavy rebar can shorten bar life.  With new chains it may be necessary to open up the diamonds, do this by making a few cuts into an abrasive material such as cinder block.  Opening the diamonds will increase cutting speed.

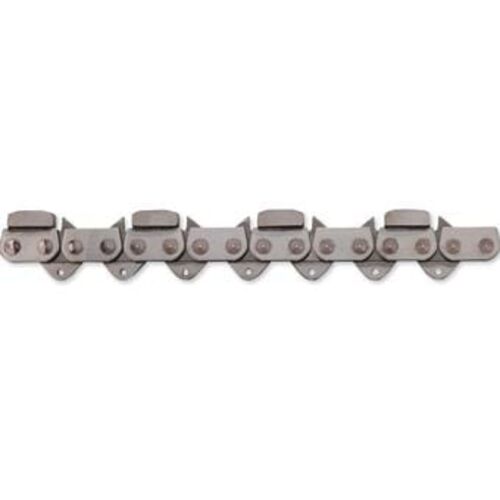

Chains measure .220″ wide, pre-cutting with a .235″ blade will allow the chainsaw to cut freely without any premature wear on side clearance of chain.  Important in keeping your saw cut straight by scoring the cut first.  This also helps in blade life by using a standard pre-cut diamond blade with cut-off saw.  Pre-Cutting is most commonly achieved with gas K970-14″ or K970-16″ or hydraulic K2500-16″ combined with the HI Series Elite Cut diamond blade.

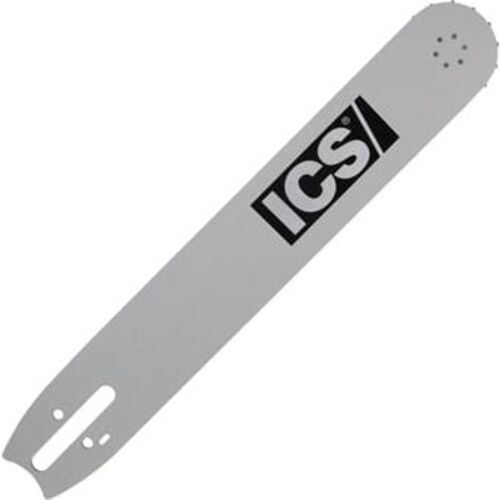

The 695GC series is a great combination of high-power saw and economical low-cost chains with the Force3 line.  Compared to the 680ES chainsaw which has a 14″ max cutting depth – 695GC can handle up to 16”.  F3 chains are lower cost compared to Force4.  Best recommended for general contractors looking for powerful, deep cutting chainsaw.  To identify what you currently have, Force3 runs on grey colored bars while Force4 runs on black bars.  Very simple to convert 695GC to 695F4 with new F4 drive sprocket, F4 bar and chain.

MORE INFO AND DESCRIPTION

The new 695XL features include an easy to start engine with higher energy ignition system and durable, long-lasting components including a new muffler, carburetor and piston & cylinder. Available with 14-inch – 16-inch guide-bars and the entire line of FORCE4 and PowerGrit series diamond chains. Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction, utility contractors and concrete professionals.
